SPECIFICATIONS
Wireless Presentation System
Wireless Present Solution For Hybrid Meeting

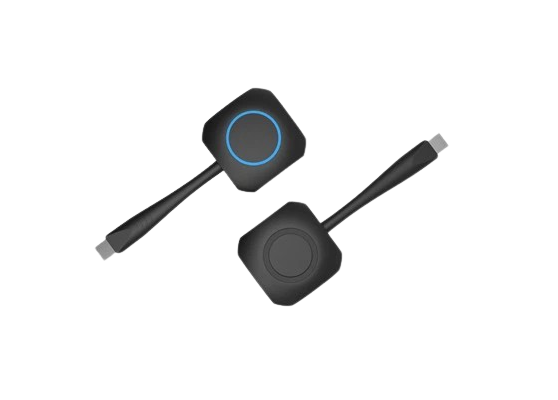

The Wireless Presentation system Transmitter is a cutting-edge multimedia technology device that is designed to provide seamless wireless connectivity for HDMI-equipped devices.
- Model: HDT1
- Wireless Band: 2.4G&5.8G
- Interface: USB2.0 (5V/500mA)
- Wireless Distance: Maximum 35M
| Featured with ultra-low power consumption | |
| Classic design with ABS plastic case and LED lighting | |
| Plug and play, no more software need to install | |
| Support dual band of 2.4G&5G,more stable and fast transfer | |
| Transfer audio and video up to 1080P resolution and 30FPS |
| Interface | USB2.0 (5V/500mA) |
| Supported OS | Windows 7 and above, macOS 10.10 and above |
| PC Minimum Spec Frequency | 1.8GHz and above; RAM: 2G and above |
| Input Resolution | Input resolution support up to 3840*2160 |
| Project Resolution | 1080P@25~30fps |
| Audio Transfer | 44.1KHz/16bit, stereo audio |
| Wireless Project | Plug and play, auto run, no need to install any software |
| Wireless Protocol | IEEE 802.11ac / 802.11n |
| Wireless Band | 2.4G&5.8G |
| Wireless Distance | Maximum 35M |
| Transmission Delay | Less than 50ms |
| Reverse Touch Control | Reverse touch control, maximum support 10 points touch |
| Extended Screen Transfer | Windows 10 PC can wireless transfer extend screen |
| High Definition Multimedia Interface | This device provides high-definition video and audio streaming with 1080p resolution and superior sound quality |
| Wireless Connectivity | The Wireless HDMI Presentation USB Hdmi Transmitter utilizes wireless technology, enabling it to seamlessly connect with your devices without any complicated setup processes |
| User-Friendly Design | 1he device is designed to be user-friendly, ensuring effortless connectivity for all users, regardless of their technical expertise |
| Multi-Device Compatibility | The device is compatible with most common operating systems, including Windows, Mac OS, Android, iOS, and Linux |
| Compact and Portable | The Wireless HDMI Presentation USB Hdmi Transmitter is small and lightweight, making it easy to take on the go |
| Software | Professional whiteboard software: rich functions, such as writing, drawing, shape, erase, gesture recognition, annotation, QR code scanning, recording etc.. Professional wireless presentation software: wireless transmission of signal form other devices of iOS, Android, Windows, macOS, chrome and ubuntu os to the interactive board |
| VLC Module (optional) | VLC Module:12M/48M HD Camera; 13M auto tracking camera; audio:8 microphone sound array system, audio pickup range up to 12M |
| Windows pro | Intel i3 CPU, 6th Gen, 3.7G Hz, DDR4-*G RAM, 256G SSD/ Intel i3 CPU, 8th Gen, 3.6G Hz, DDR4-8G RAM (optional) |
| Windows max | Intel i5 CPU, 6th Gen, 2.7G Hz, DDR4-8G RAM, 256G SSD/ Intel i5 CPU, 8th Gen, 2.8G Hz, DDR4-8G RAM (optional) |
| Windows Maxplus | Intel i7 CPU, 6th Gen, 3.4G Hz, DDR4-8G RAM, 256G SSD/ Intel i7 CPU, 8th Gen, 3.2G Hz, DDR4-8G RAM (optional) |
| Input Interface | HDMI*2, USB*2, RS232*1, RJ45*1, Earphone terminals CVBs*2,Touch Port*1 |
| Output Interface | Earphone terminals CVBs*1, RCA*1 |
| Front Panel | PC/AN-USB*2, PC-USB 3.0*1, HDMI Input*1,Touch Port*1, Remote control receiver*1, Type C |
| Type C |
| Power Supply | Ac 100V-240V, 50/60Hz |
| Power Consumption | Lessthan 135W |
| Front Speaker | 12W*2/15W*2 |
| Accessories | Infrared touch, remote control, manual, power cable, stand (optional) |
| VESA (mm) | 500*400 |
| Net Product Dimension (mm) | 1486.08*901.26*88.9 |
| Net Product Dimension (kg) | 37.2 |
